AFC-500 Evidence Layer

AFC-500 Images

Build photos, flame states, chamber details, feedstock records, and field operation images. These images document the physical reproduction of AFC-500 and its gas-phase oxidation behavior.

Build Notes

Chamber construction, refractory layout, rod configuration, nozzle details, and handmade assembly records.

Chamber Build

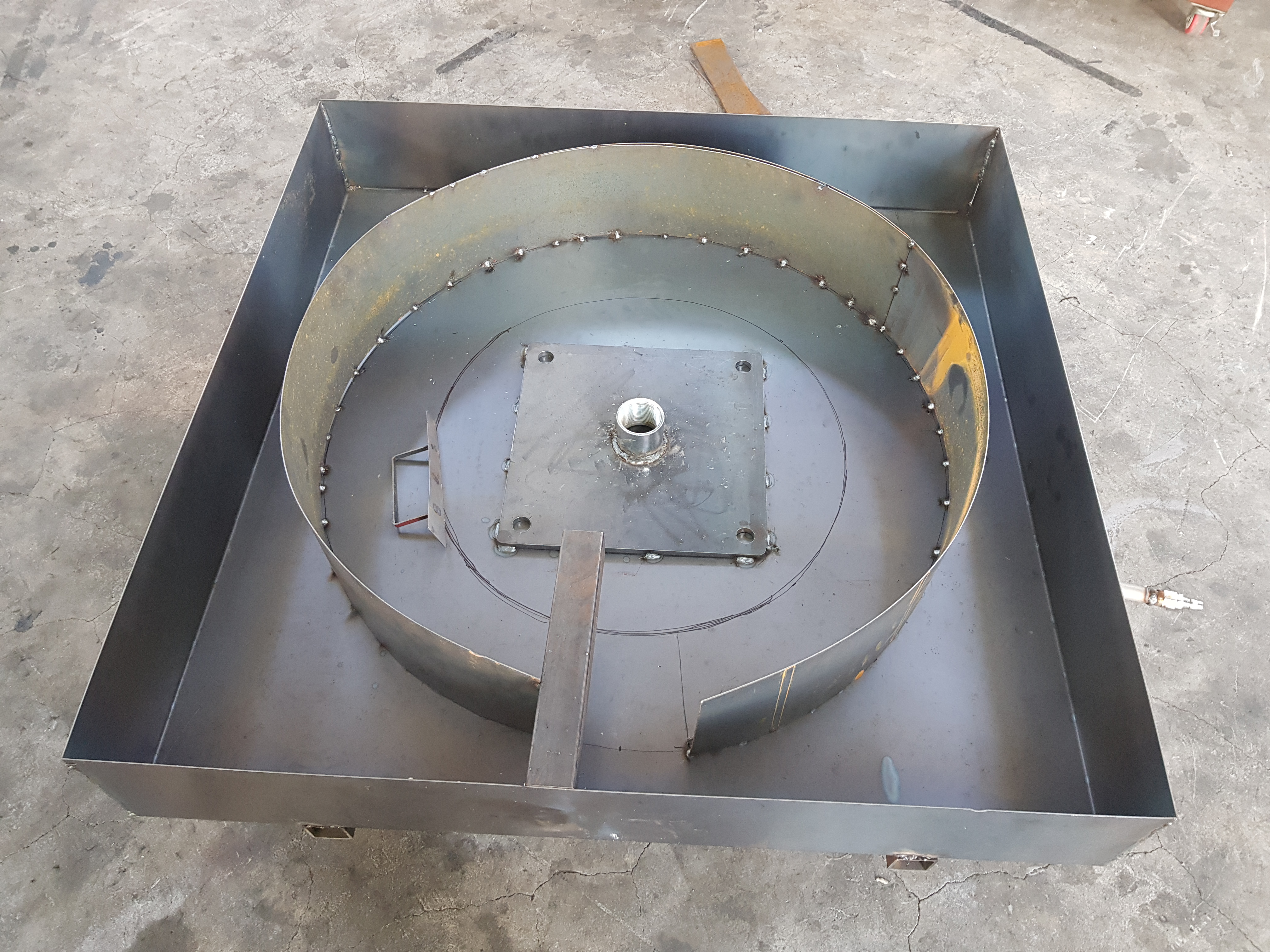

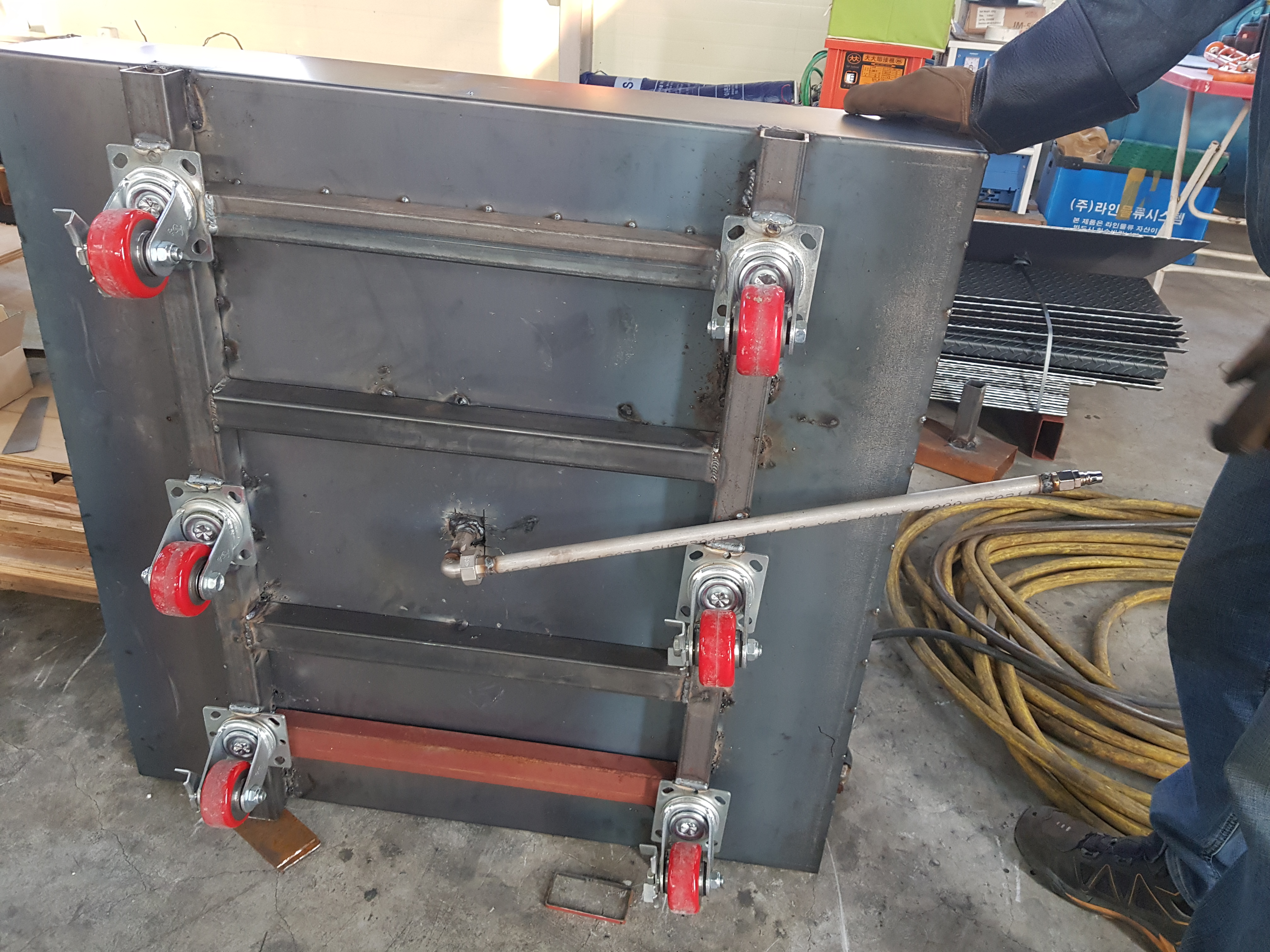

Lower support steel plate structure-01

Chamber Build

Lower support steel plate structure-02.

Central Rod Setup

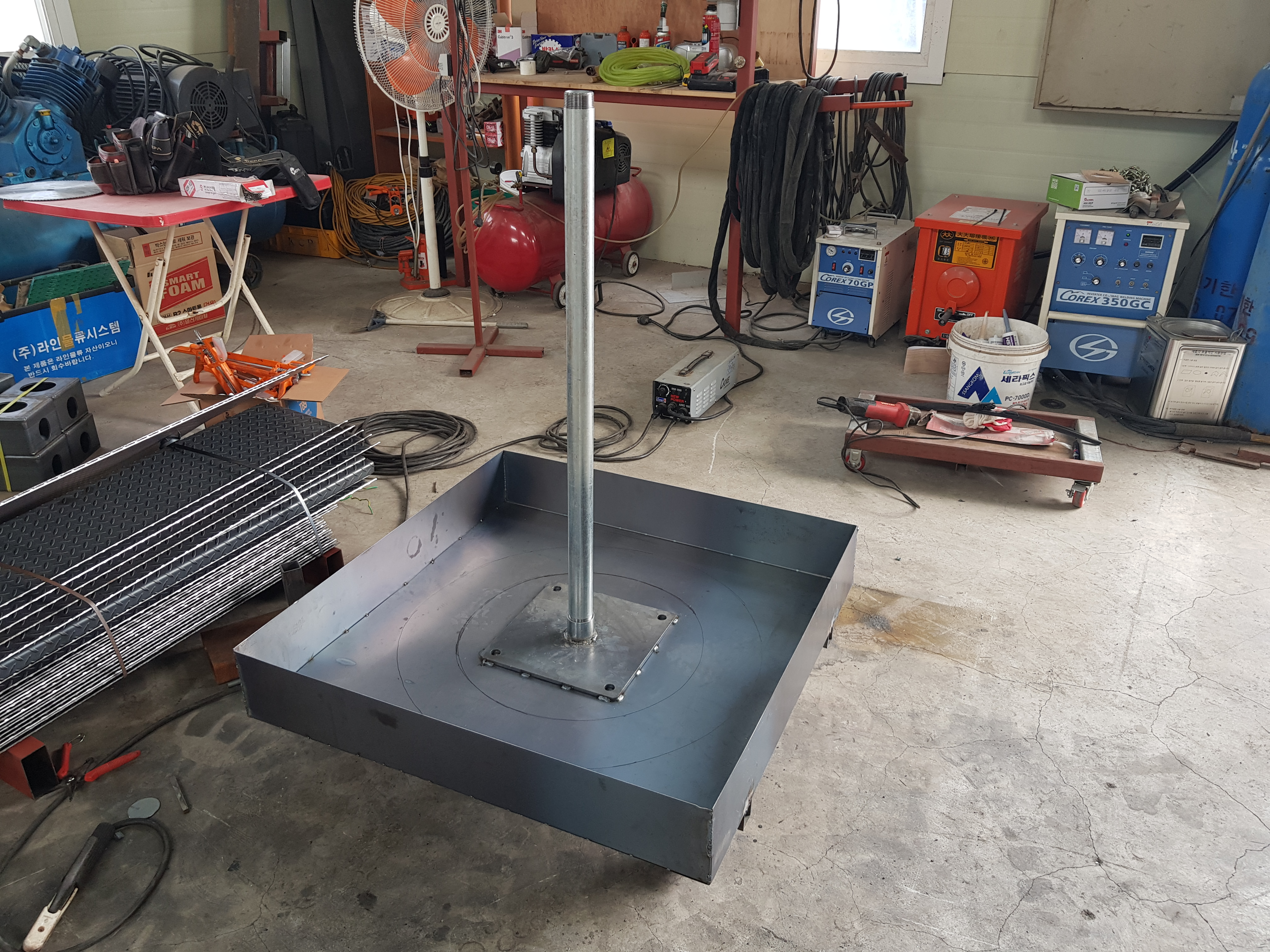

Rod position and air delivery configuration.

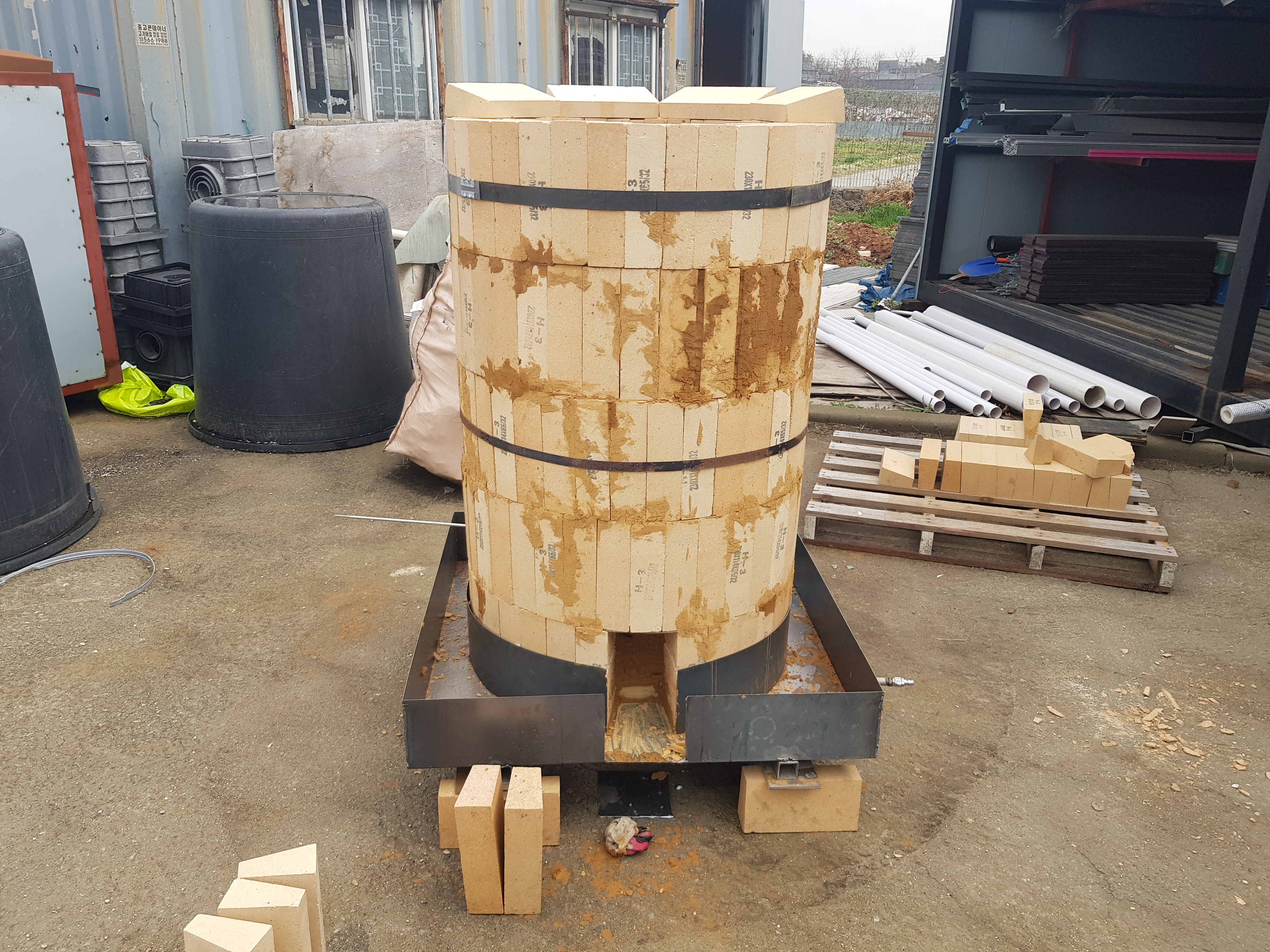

Chamber Build

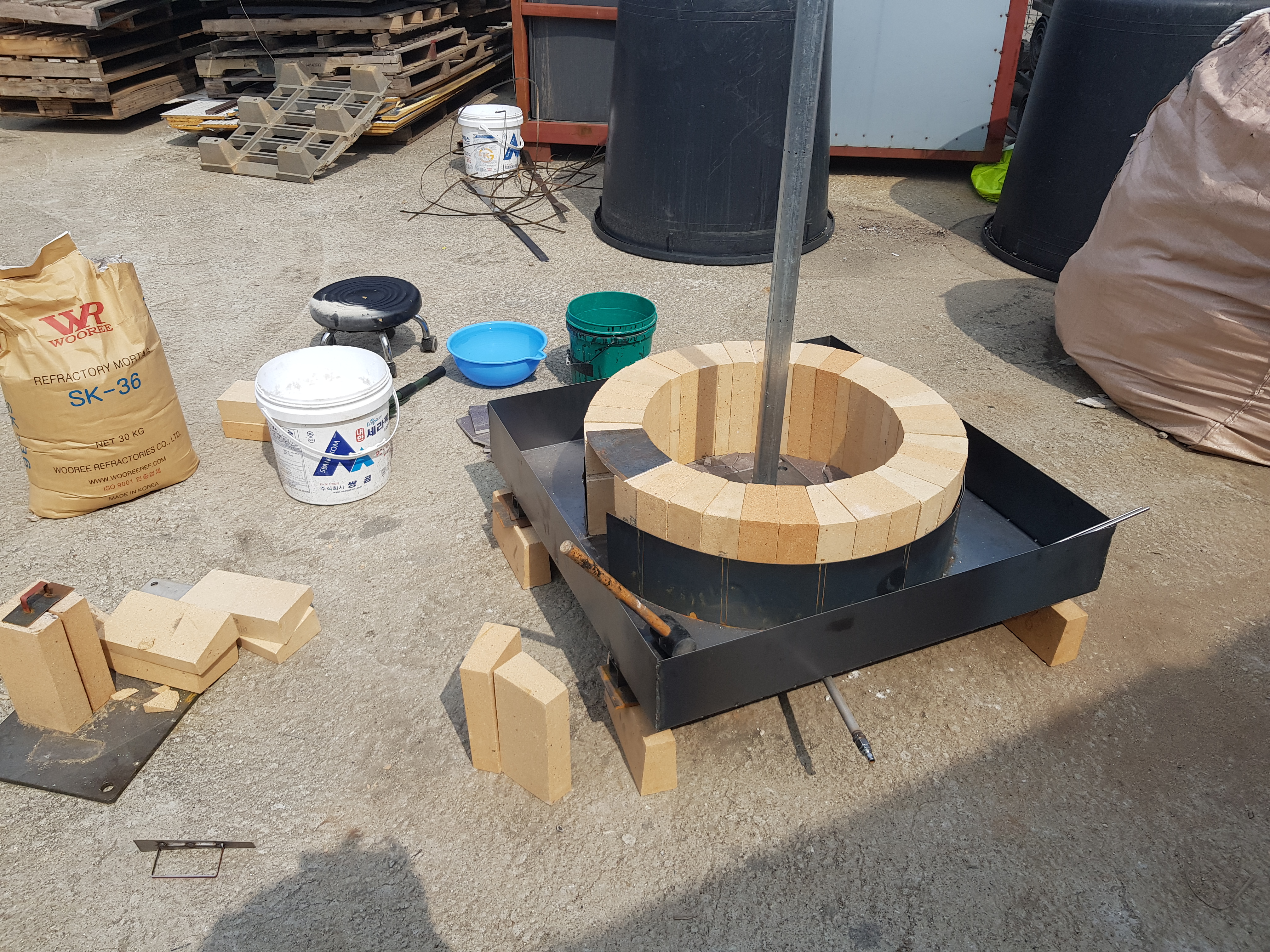

Building a chamber with refractory bricks

Chamber Build

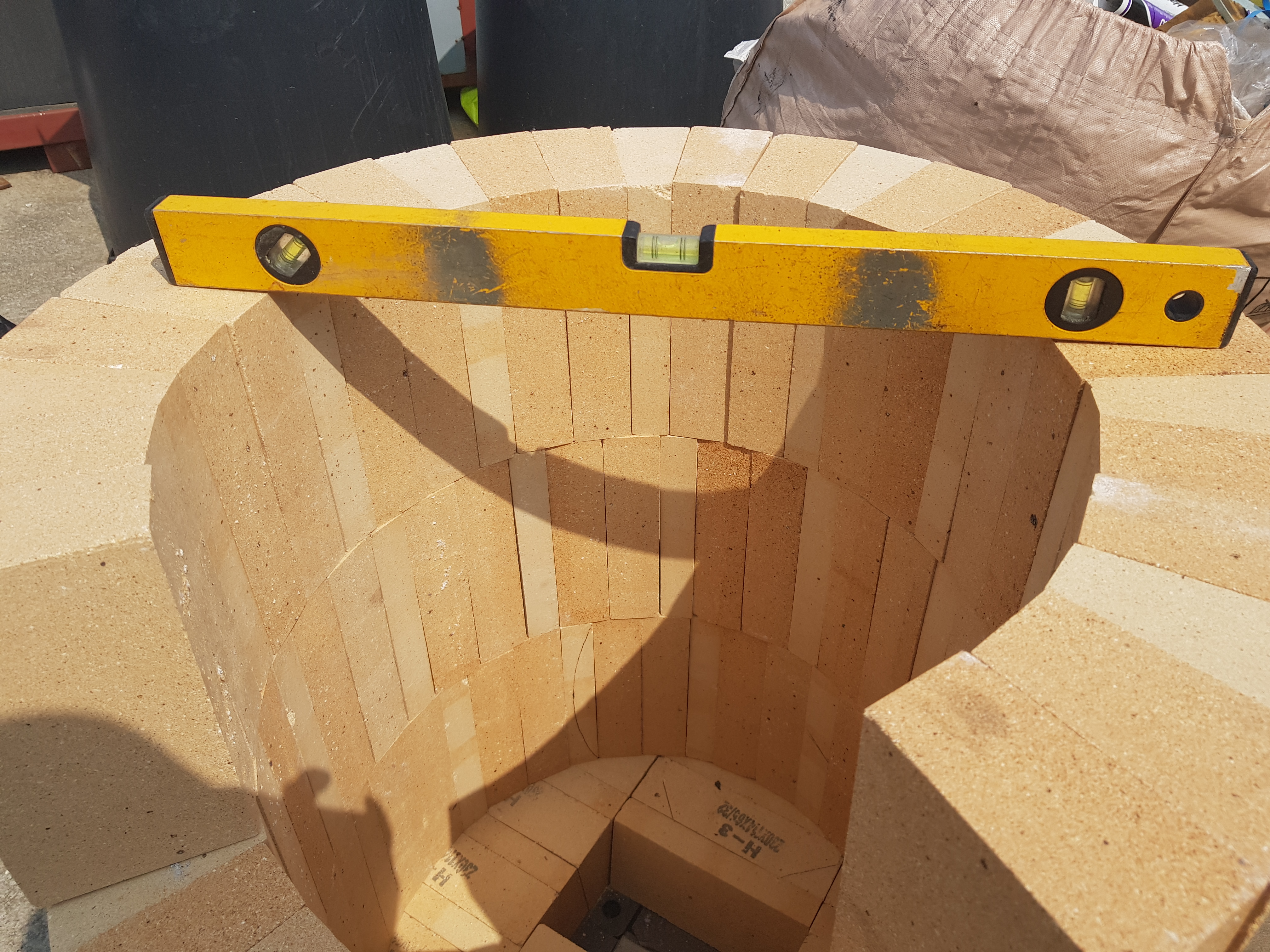

Building a chamber with refractory bricks

Chamber Build

Building a chamber with refractory bricks

Flame States

Visual records of staged flame formation, stabilization, and gas-phase oxidation behavior.

Stage Formation

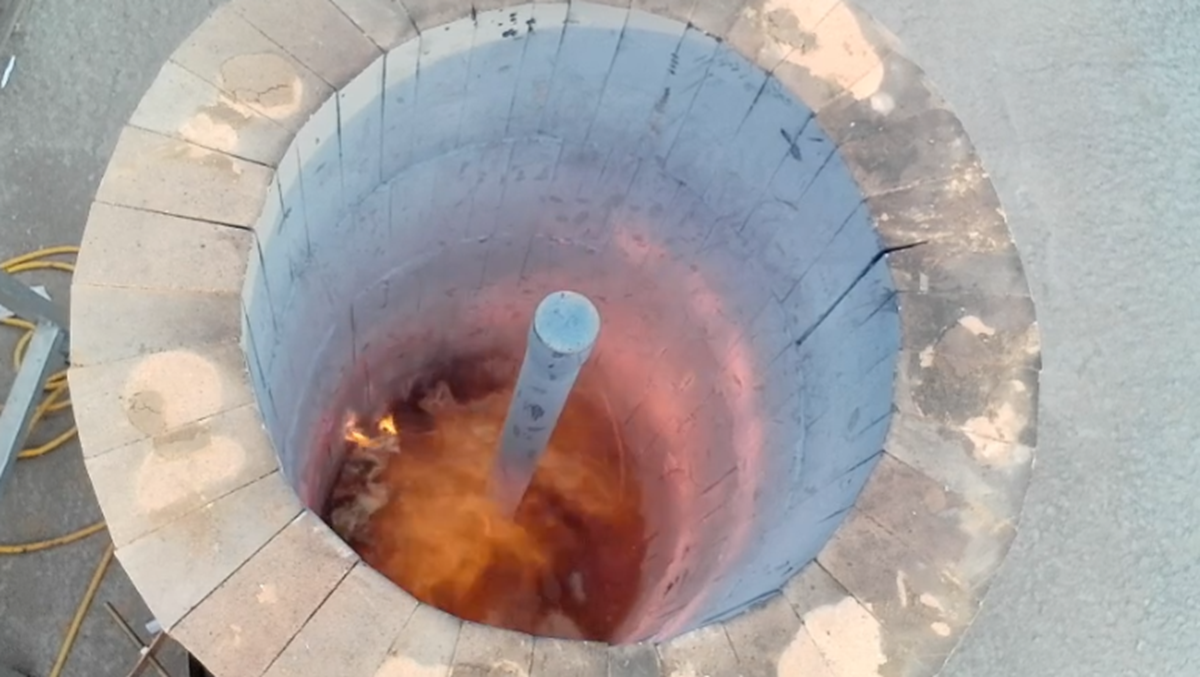

Early flame structure during stabilization.

Self-sustained

No smoke. No odor. Just flow.

Gas-phase Oxidation

No smoke. No odor. Just flow.

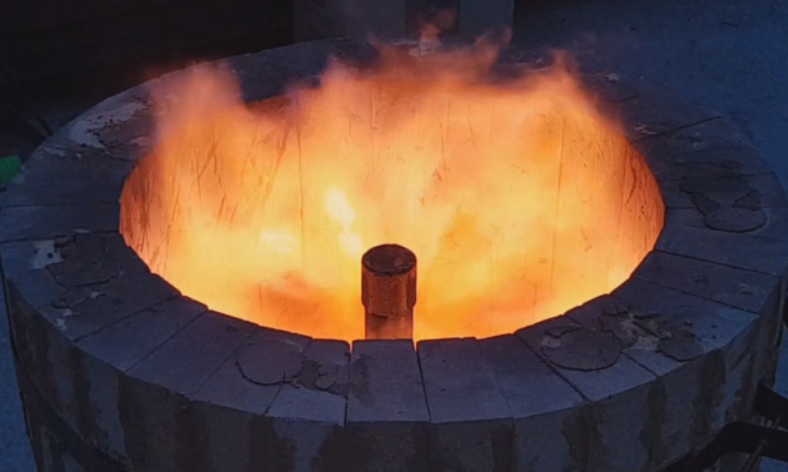

Final Oxidation Zone

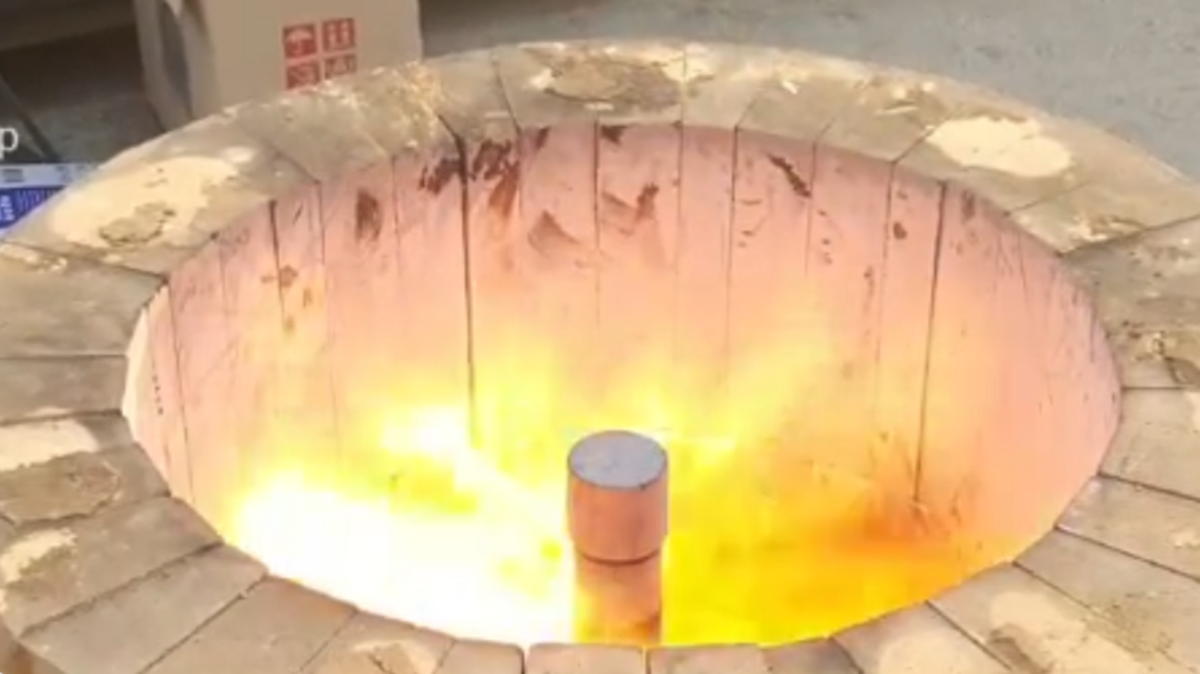

Top stage flame

Final Oxidation Zone

Top stage flame

Ignition Phase

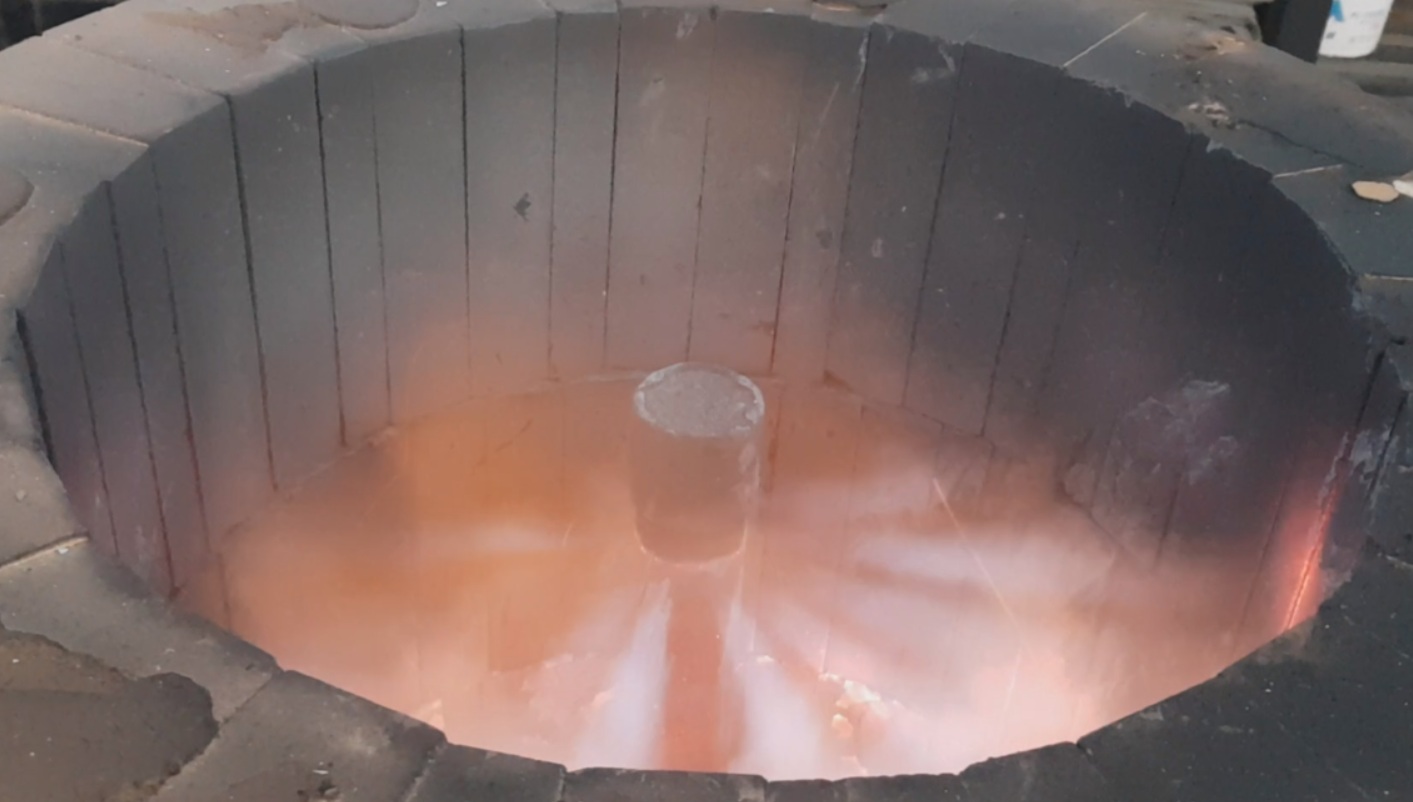

First & Second Stage Flame

Operation

Feeding sequence, stabilization phase, continuous operation, and manual field handling.

Feeding

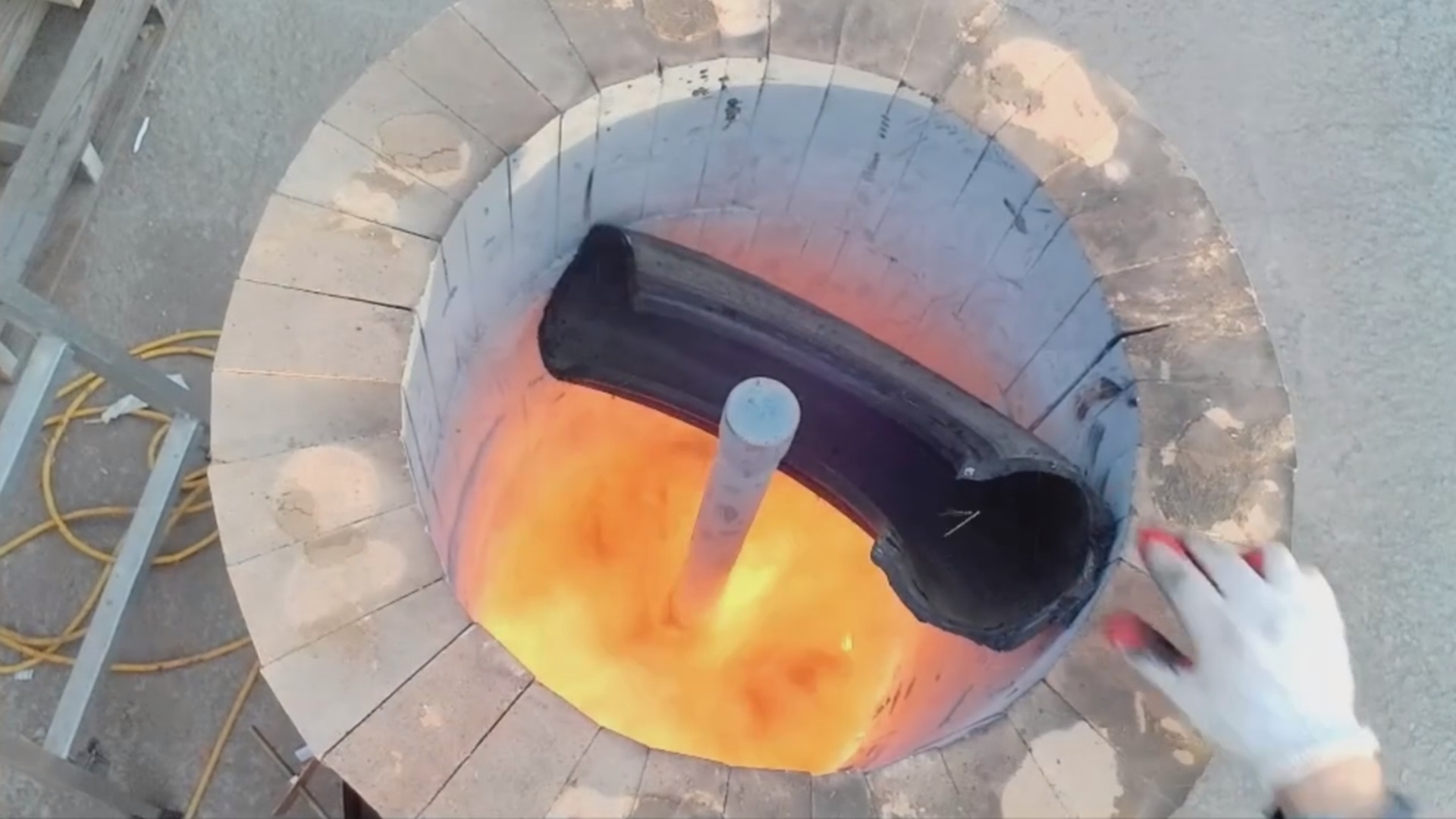

SPCW input during field operation.

Stabilized Operation

Thermal behavior after chamber stabilization.

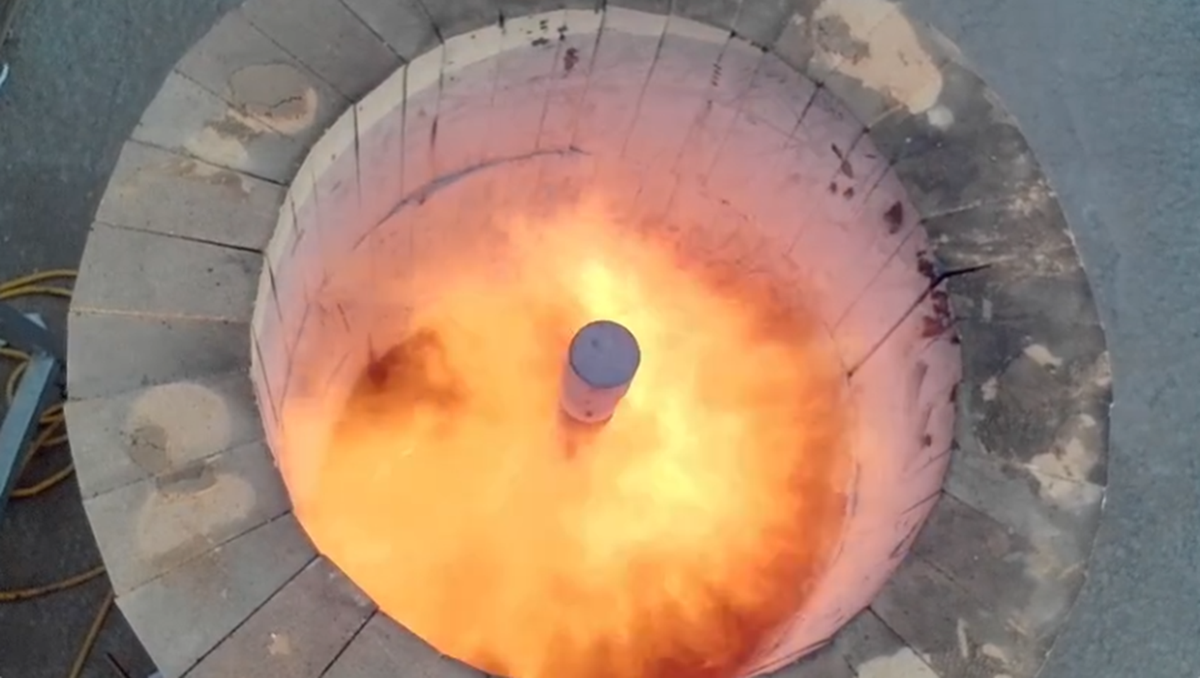

Materials

SPCW feedstock examples including plastics, tires, rubber, mixed polymer waste, and related field materials.

Plastic SPCW

Synthetic polymer compound waste prepared for treatment.

Waste Tire

High-carbon SPCW behavior during oxidation.
